Vector Diagram Maker Vector Diagrams

Describe your vectors and get a clean, labeled physics diagram in seconds. Head-to-tail addition, parallelogram method, component resolution, free-body forces, projectile motion, and more.

Vector addition methodsComponent resolution (x/y)Labeled magnitudes & anglesPrint & slide readyLast updated: 2026-06-21

Vector Diagram Examples

Browse vector diagrams made with Figviz, or generate your own above

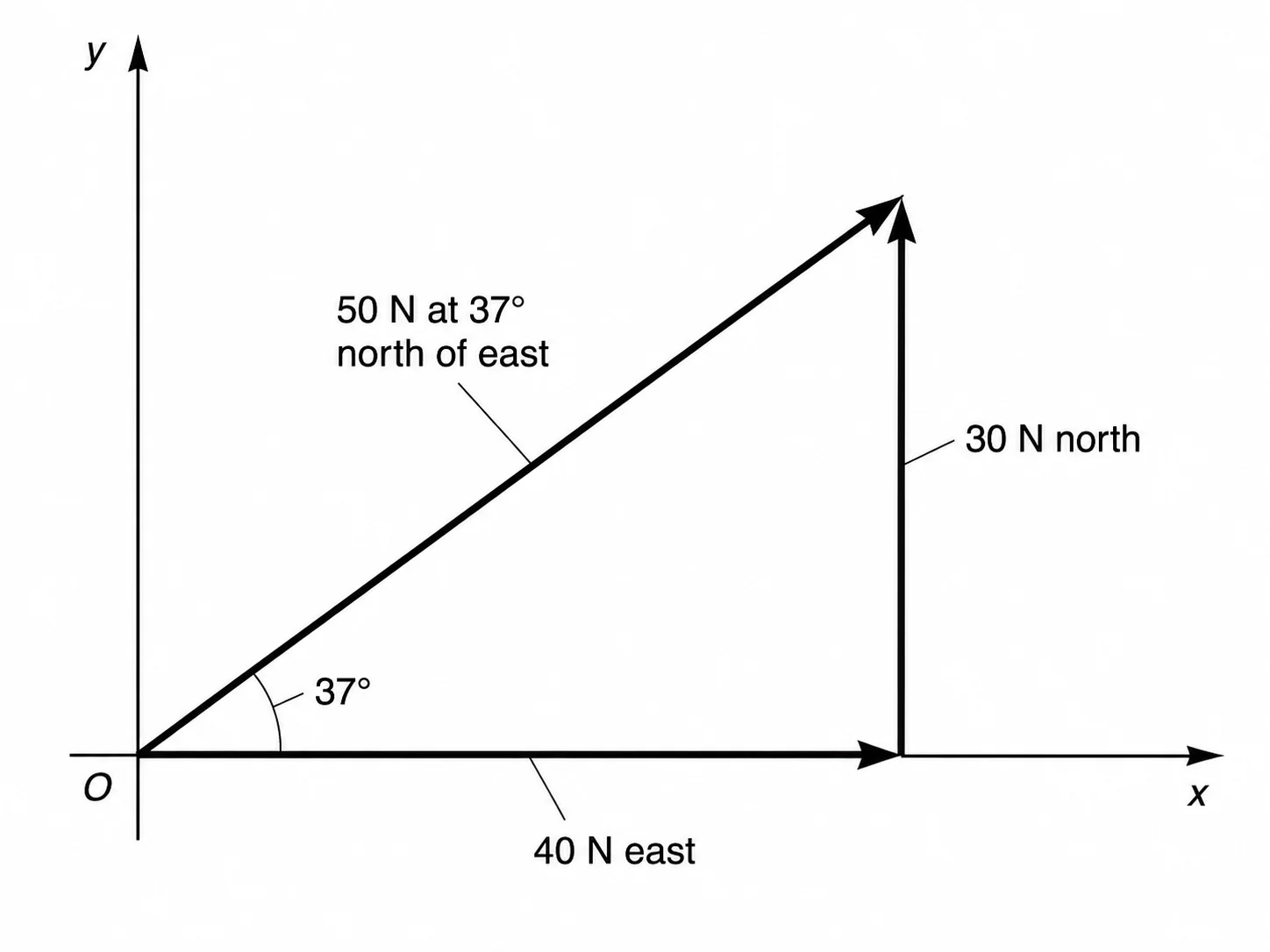

Vector Addition: Head-to-Tail Method

Two vectors placed head-to-tail with the resultant drawn from the tail of the first to the head of the last, magnitude and angle labeled.

vector additionhead-to-tailresultant

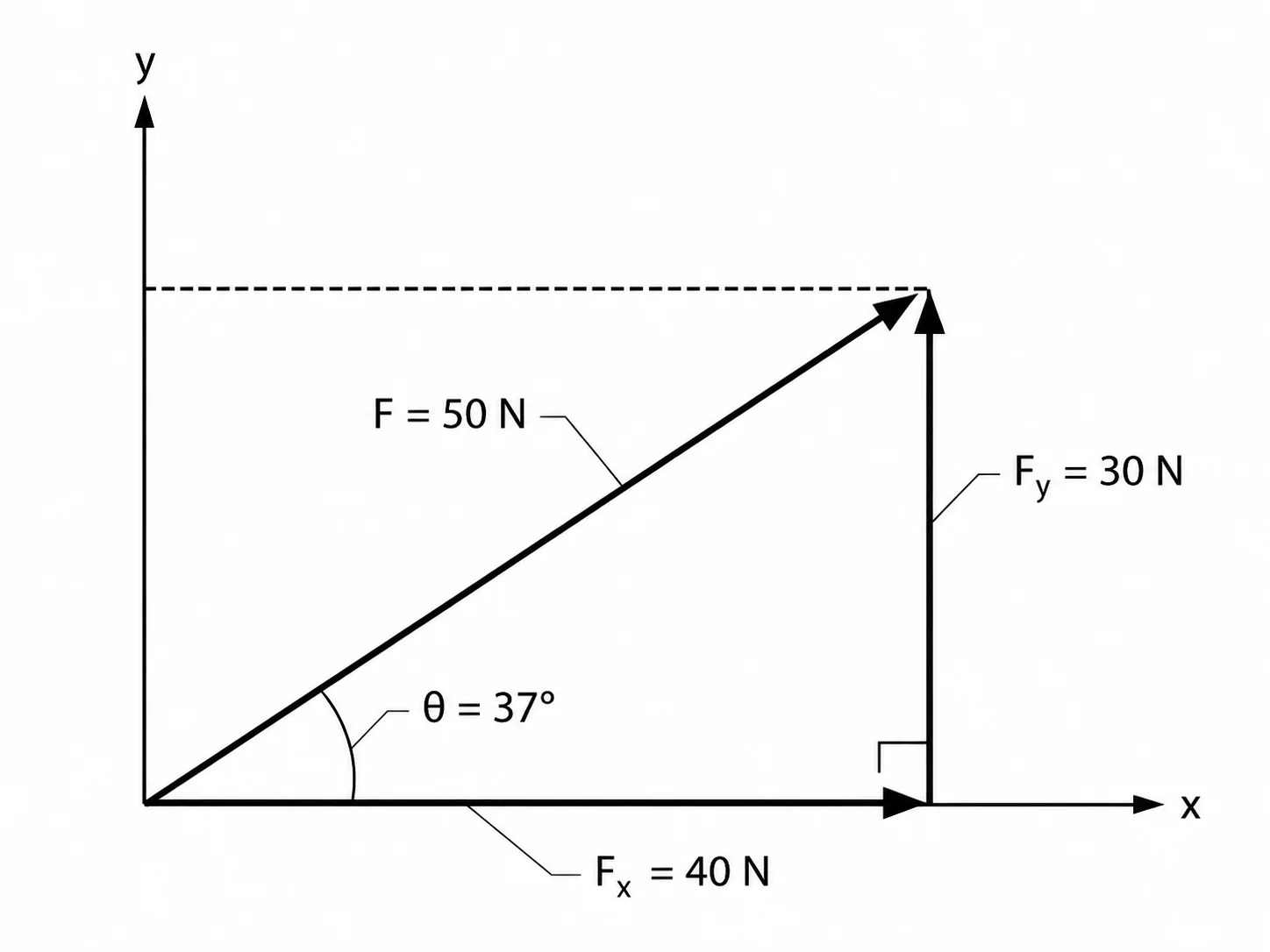

Vector Resolution into X and Y Components

A single vector broken into its x-component and y-component using trigonometry, with all magnitudes and the angle labeled.

vector resolutioncomponentstrigonometry

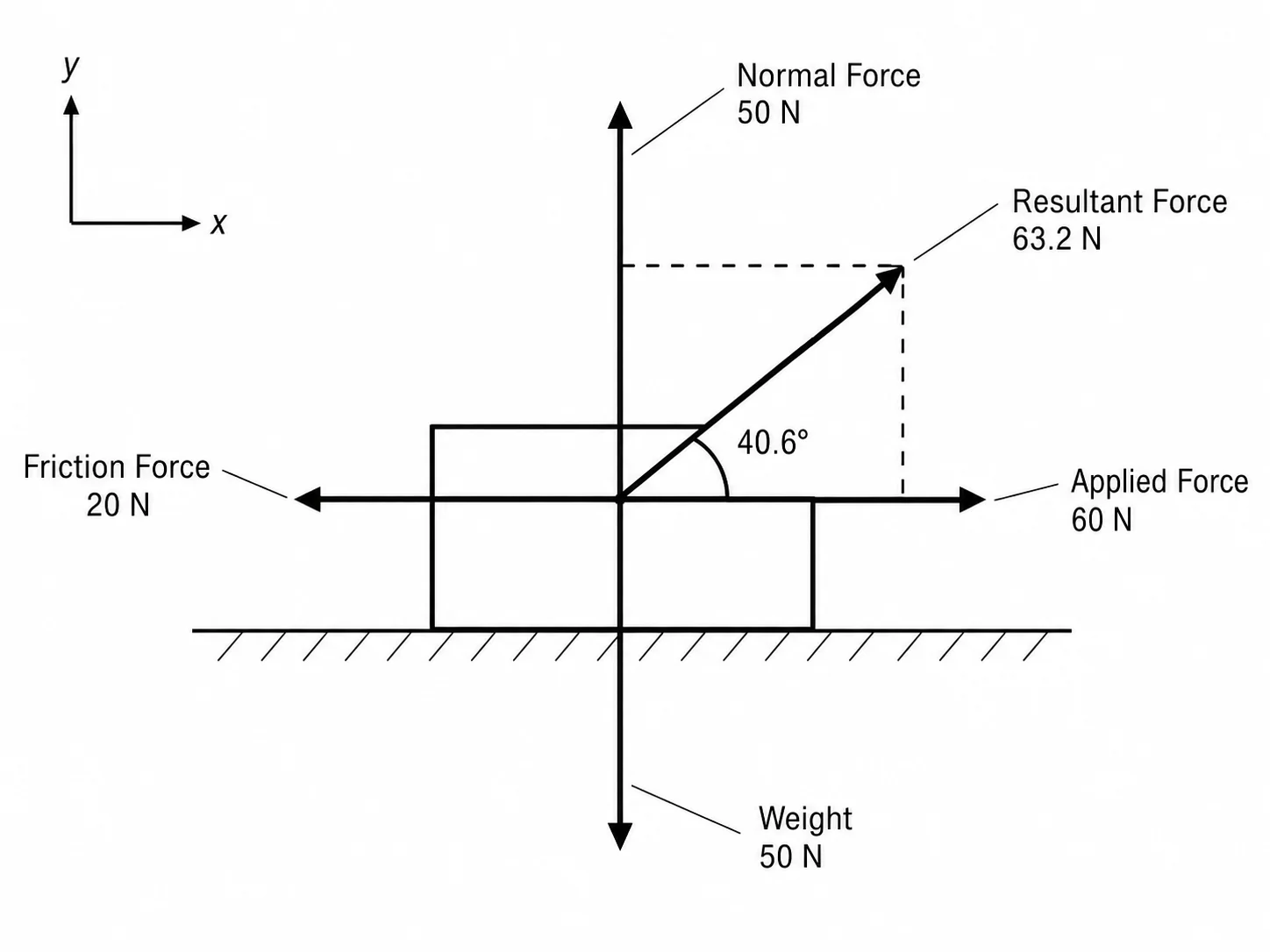

Force Vectors on an Object

Multiple force vectors drawn on a single object: applied force, friction, normal force, and weight, each labeled with magnitude and direction.

force vectorsfree bodyphysics

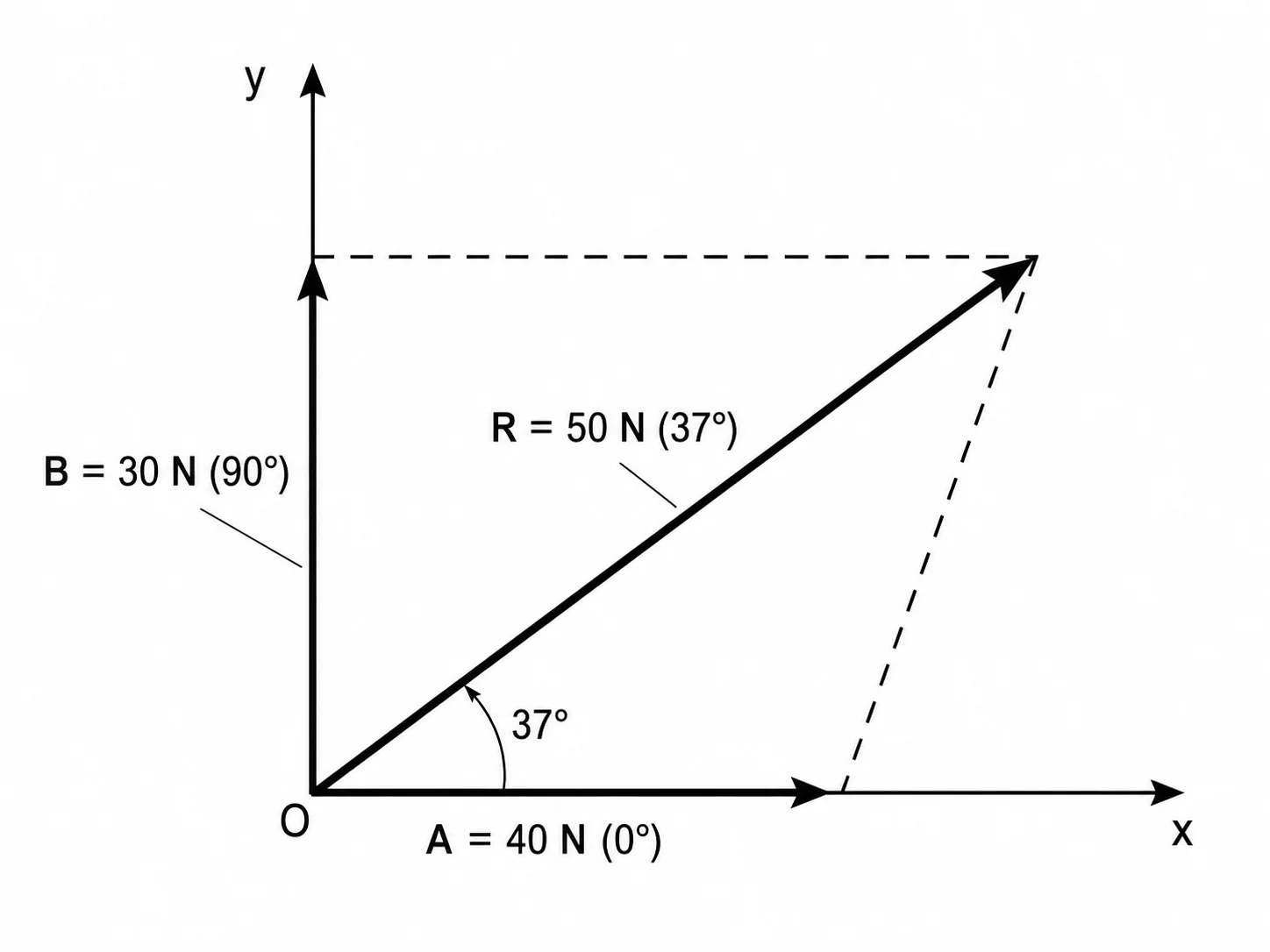

Parallelogram Method for Resultant

Two vectors drawn from a common origin forming a parallelogram, with the diagonal representing the resultant vector.

parallelogramvector additionresultant

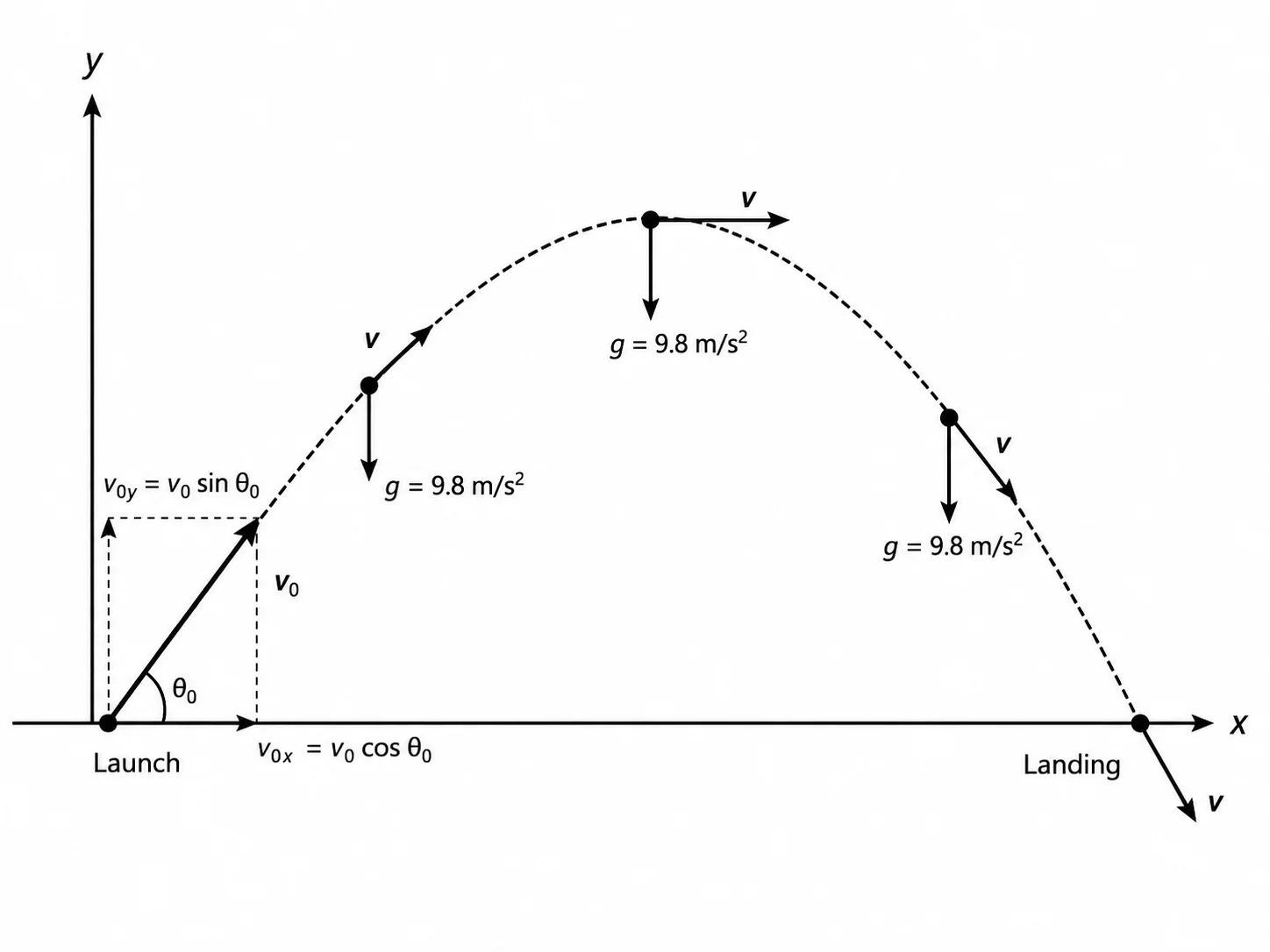

Velocity and Acceleration Vectors on a Projectile

A projectile path with velocity vectors shown at launch, peak, and landing, plus the constant downward gravitational acceleration vector.

projectilevelocityacceleration

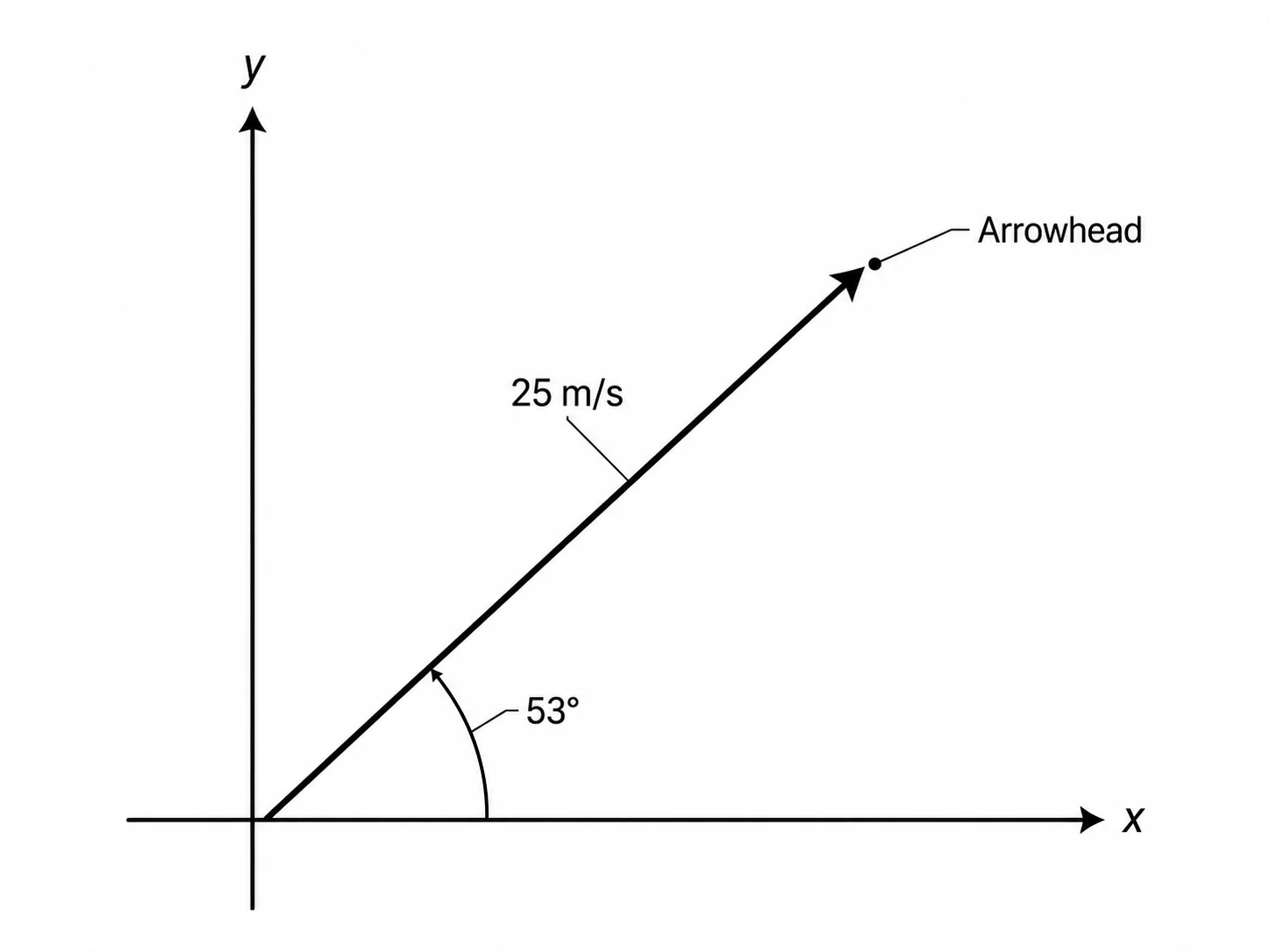

Single Vector with Magnitude and Direction

A single vector drawn on x-y axes with its magnitude, direction angle, and arrowhead clearly labeled, suitable for introducing vector notation.

single vectormagnitudedirection

Prompt templates you can copy

Start with one of these examples, then adapt the subject, labels, data, or layout for your own use.

Vector Addition: Head-to-Tail Method

Two vectors placed head-to-tail with the resultant drawn from the tail of the first to the head of the last, magnitude and angle labeled.

Draw a vector addition diagram using the head-to-tail method: a 40 N east vector followed by a 30 N north vector. Show the resultant vector from the origin to the final arrowhead, labeled 50 N at 37 degrees north of east. Classic textbook style with axes. White background.

Vector Resolution into X and Y Components

A single vector broken into its x-component and y-component using trigonometry, with all magnitudes and the angle labeled.

Draw a vector resolution diagram: a vector of magnitude 50 N at 37 degrees above the horizontal. Show the x-component (40 N) as a horizontal arrow and y-component (30 N) as a vertical arrow, all labeled. Include a right-angle marker and the angle theta. Classic style. White background.

Force Vectors on an Object

Multiple force vectors drawn on a single object: applied force, friction, normal force, and weight, each labeled with magnitude and direction.

Draw force vectors on a rectangular block on a flat surface: an applied force (60 N right), friction force (20 N left), normal force (50 N up), and weight (50 N down). Label each vector with its name and magnitude. Clean textbook style, arrows originating from the block center. White background.

Parallelogram Method for Resultant

Two vectors drawn from a common origin forming a parallelogram, with the diagonal representing the resultant vector.

Draw a vector addition diagram using the parallelogram method: two vectors from a common origin, 40 N at 0 degrees and 30 N at 90 degrees. Complete the parallelogram with dashed sides and draw the resultant diagonal (50 N at 37 degrees). Label all vectors and the angle. White background.

What is a vector diagram?

A vector diagram is a scaled drawing that represents one or more vectors as arrows, where the length of each arrow shows the magnitude and the arrowhead shows the direction. In physics, vector diagrams are used to visualize forces, velocities, accelerations, and displacements. Because vectors have both magnitude and direction, you cannot simply add them with arithmetic: you need a diagram to see how they combine. Figviz generates clean, labeled vector diagrams from a plain description, so you can focus on understanding the physics instead of drawing arrows by hand.

How to make a vector diagram

Identify the vectors involved: list each one with its magnitude and direction (angle or compass bearing).
Choose a method: head-to-tail for a chain of vectors, parallelogram for two vectors from a common point, or component resolution for breaking one vector into x and y parts.
Describe the scenario in the prompt field, including the magnitudes, angles, and any labels you want shown.
Choose a style (Classic for textbook look, Colorful to distinguish vectors at a glance, Minimal for clean slides) and click Generate.
Download the high-resolution PNG and paste it into your notes, worksheet, or presentation.

Vector addition methods explained

Head-to-tail method: draw the first vector, then place the tail of the second at the head of the first. Keep adding vectors in sequence. The resultant runs from the tail of the first vector to the head of the last. This method works for any number of vectors.
Parallelogram method: draw two vectors from the same starting point. Complete the parallelogram by adding dashed copies of each vector. The diagonal of the parallelogram from the shared origin is the resultant. This method is most convenient for exactly two vectors.
Component method (resolution): resolve each vector into its x-component (horizontal) and y-component (vertical) using trigonometry. Sum all x-components and all y-components separately, then combine the totals to find the resultant magnitude and angle. This approach scales to any number of vectors and is the most precise.

Tips for clear physics vector diagrams

Always label every arrow with its quantity, magnitude, and unit (for example "F = 40 N"). Show angles relative to a clear reference line, typically the positive x-axis or horizontal, and mark them with an arc. Use a consistent scale so arrow lengths match the magnitudes visually. For component diagrams, include a right-angle marker where the components meet. If you are showing multiple vectors on one object (such as a free-body diagram), start all arrows from the same point or from the object itself so the diagram does not look like a head-to-tail chain. Regenerate with a more detailed prompt if any label is missing or the angle looks wrong.

Frequently asked questions

A vector diagram maker is a tool that draws physics vector diagrams for you. With Figviz you describe the vectors, magnitudes, and method (head-to-tail, parallelogram, or component), and the AI generates a clean, labeled diagram with arrowheads, angle markers, and resultant vectors in seconds.

Make your own vector diagram with Figviz

Create a free account and get starter credits to generate your own. No credit card required.
