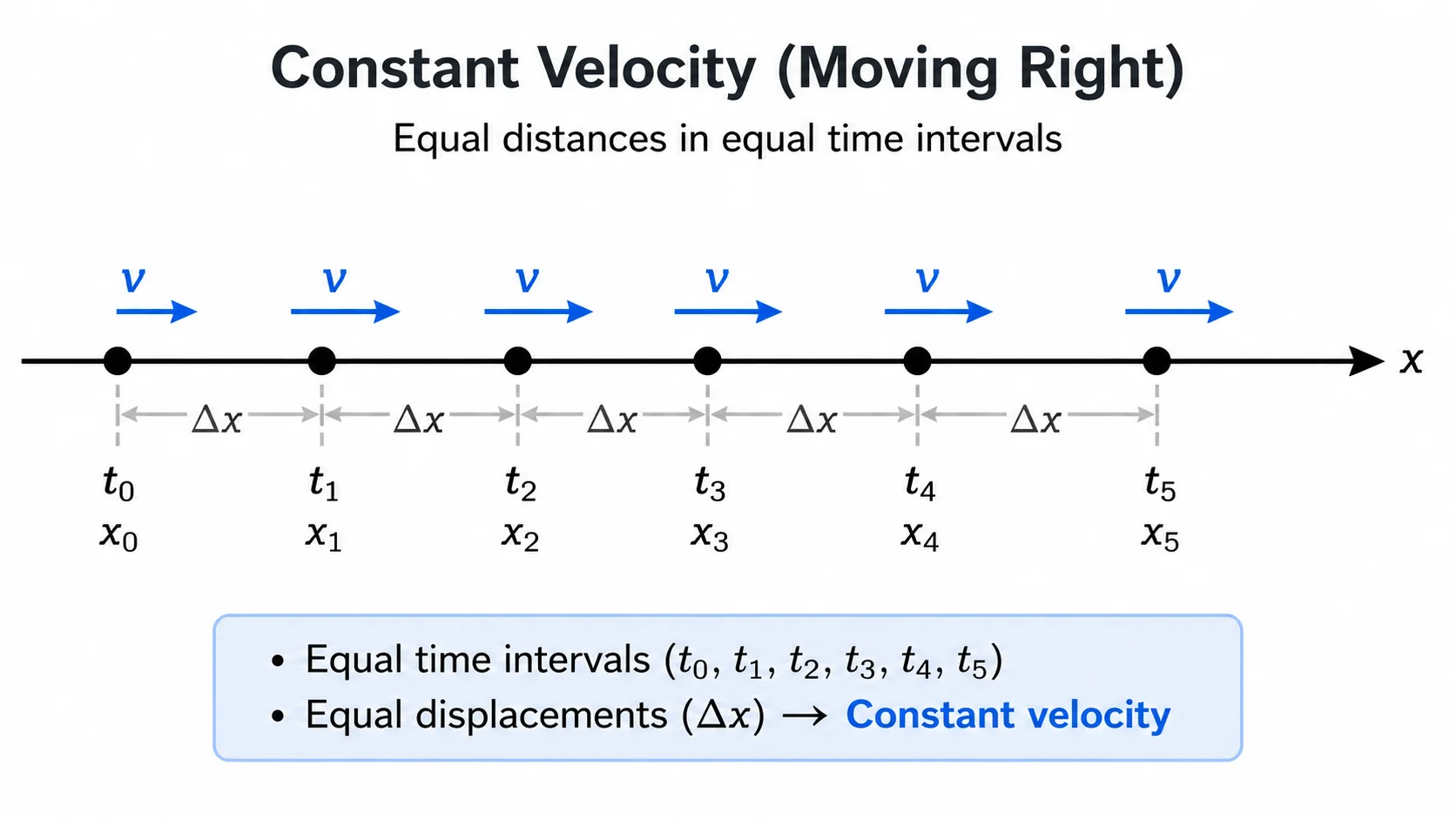

Evenly spaced dots along a horizontal axis represent an object moving at constant speed, with time-step labels beneath each dot.

kinematicsconstant velocityhorizontal motion

Acceleration Motion Diagram

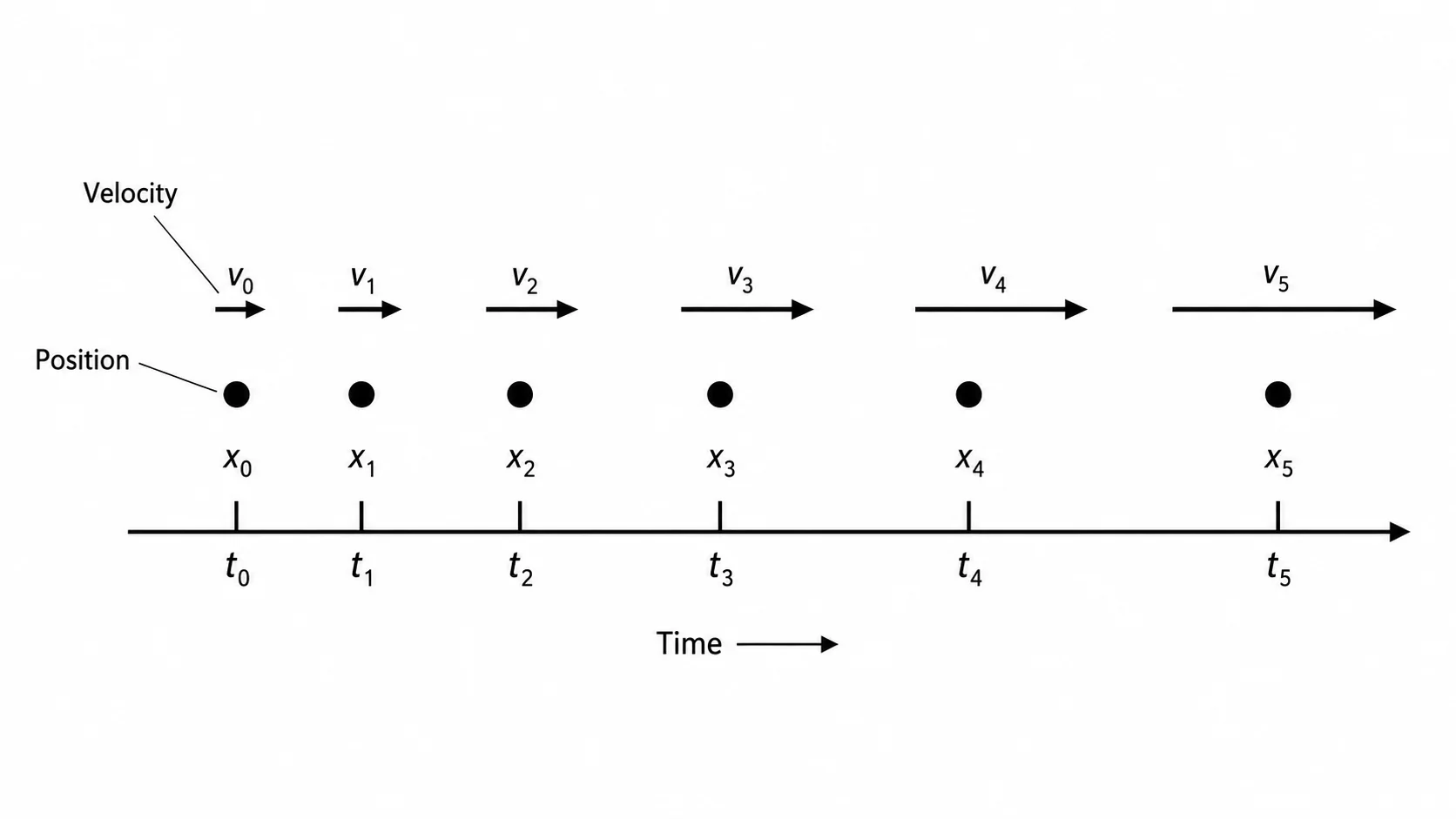

Dots spaced progressively farther apart show an object accelerating to the right, with growing velocity vectors above each dot.

kinematicsaccelerationincreasing spacing

Deceleration Motion Diagram

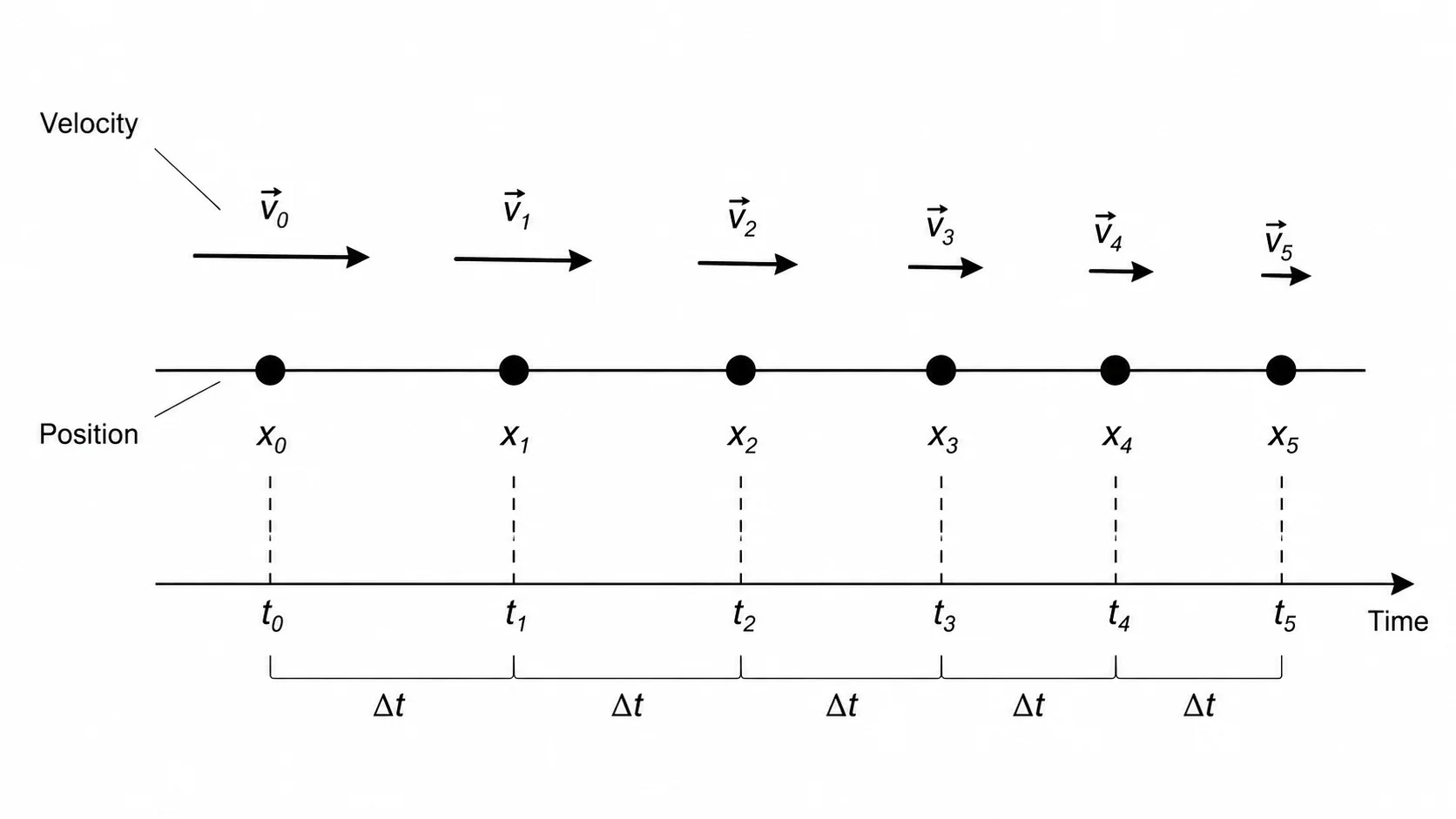

Dots spaced progressively closer together show an object decelerating, with shrinking velocity vectors illustrating the slowdown.

kinematicsdecelerationdecreasing spacing

Motion Diagram with Velocity Vectors

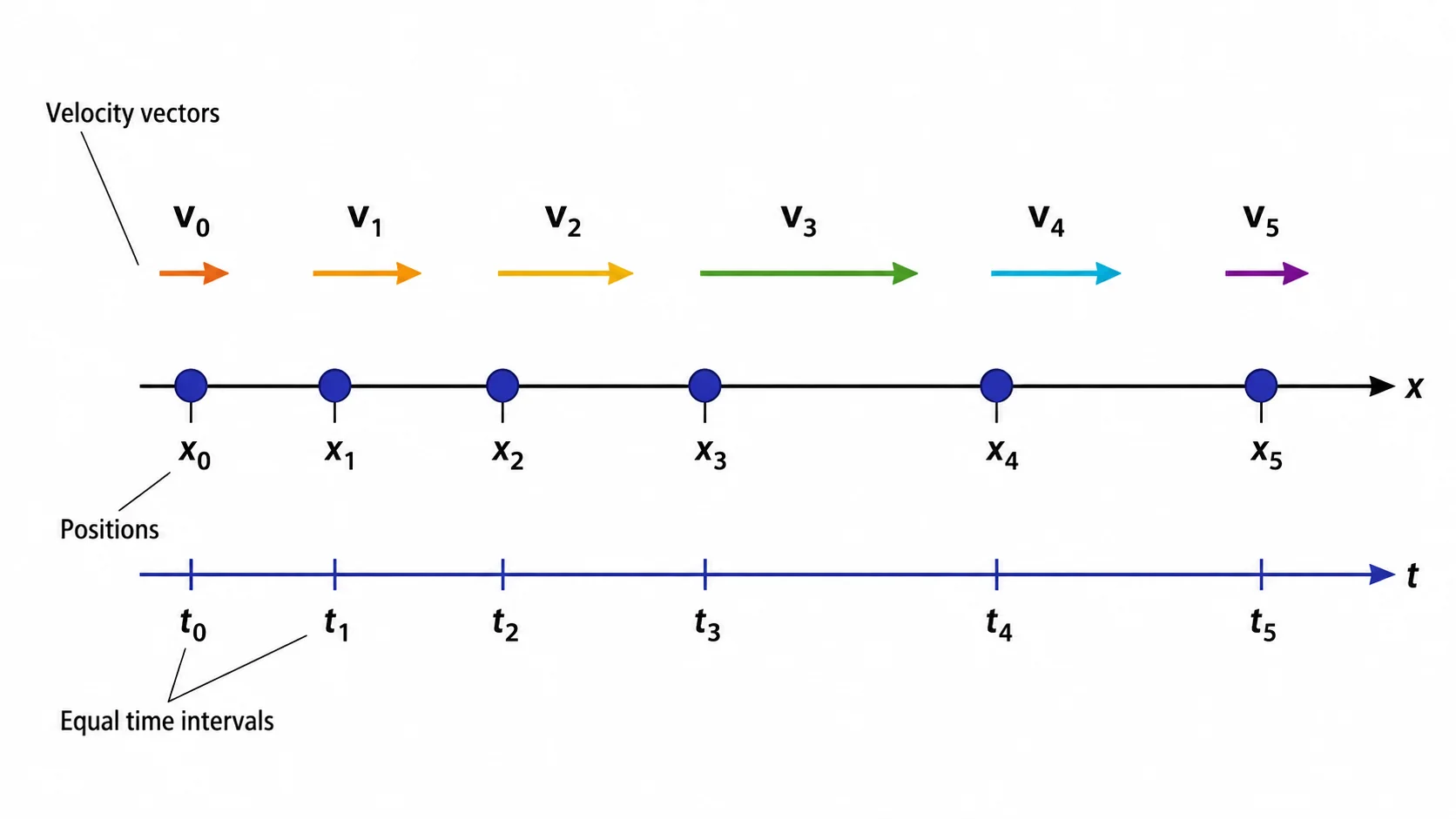

Each dot carries a labeled velocity vector arrow showing both direction and magnitude at each time step.

kinematicsvelocity vectorslabeled

Vertical Projectile Motion Diagram

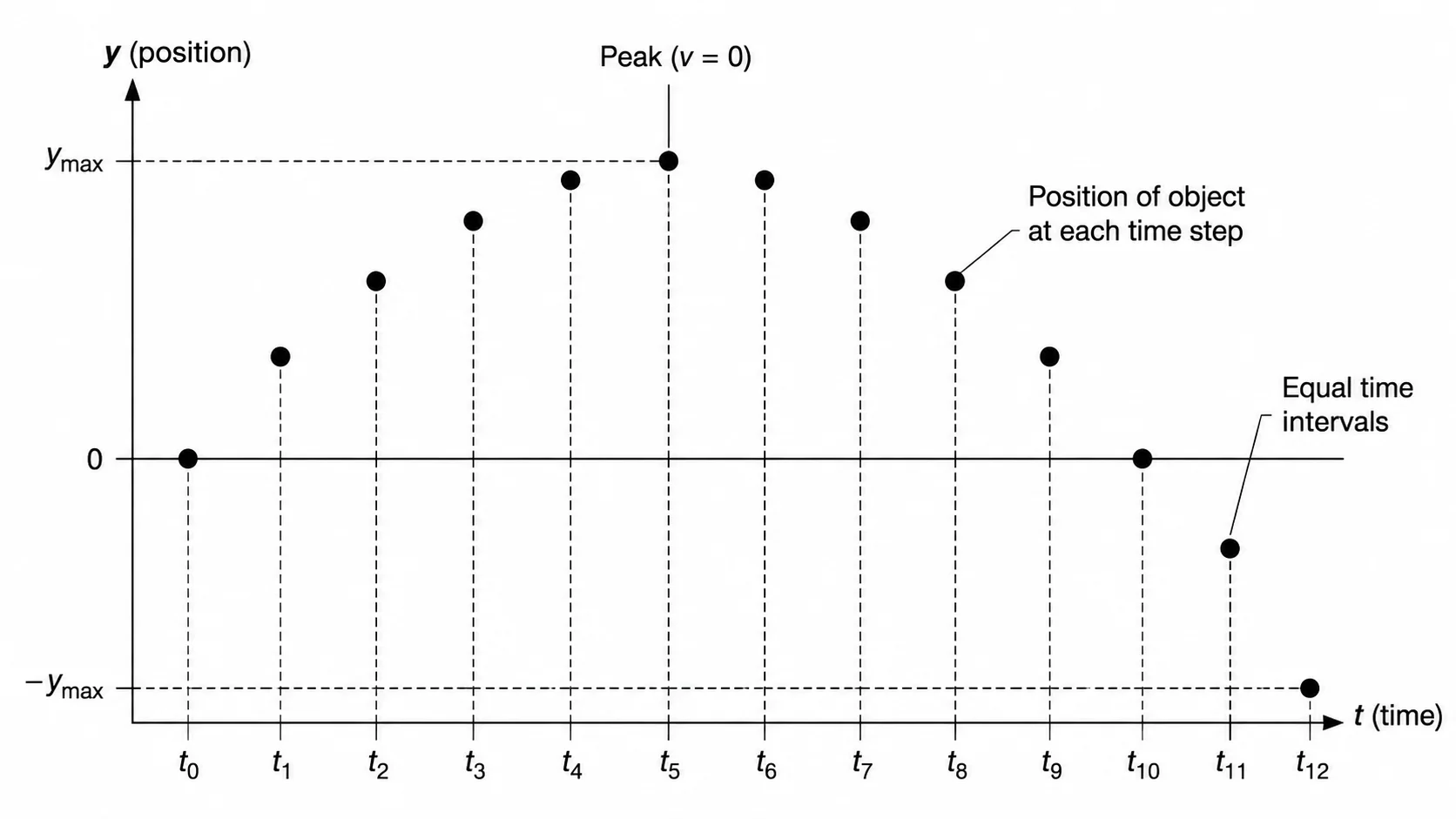

A vertical axis shows dots bunching near the peak (low speed) and spreading near launch and landing (high speed), capturing the full up-and-down trajectory.

kinematicsprojectilevertical motion

Motion Diagram with Position-Time Relationship

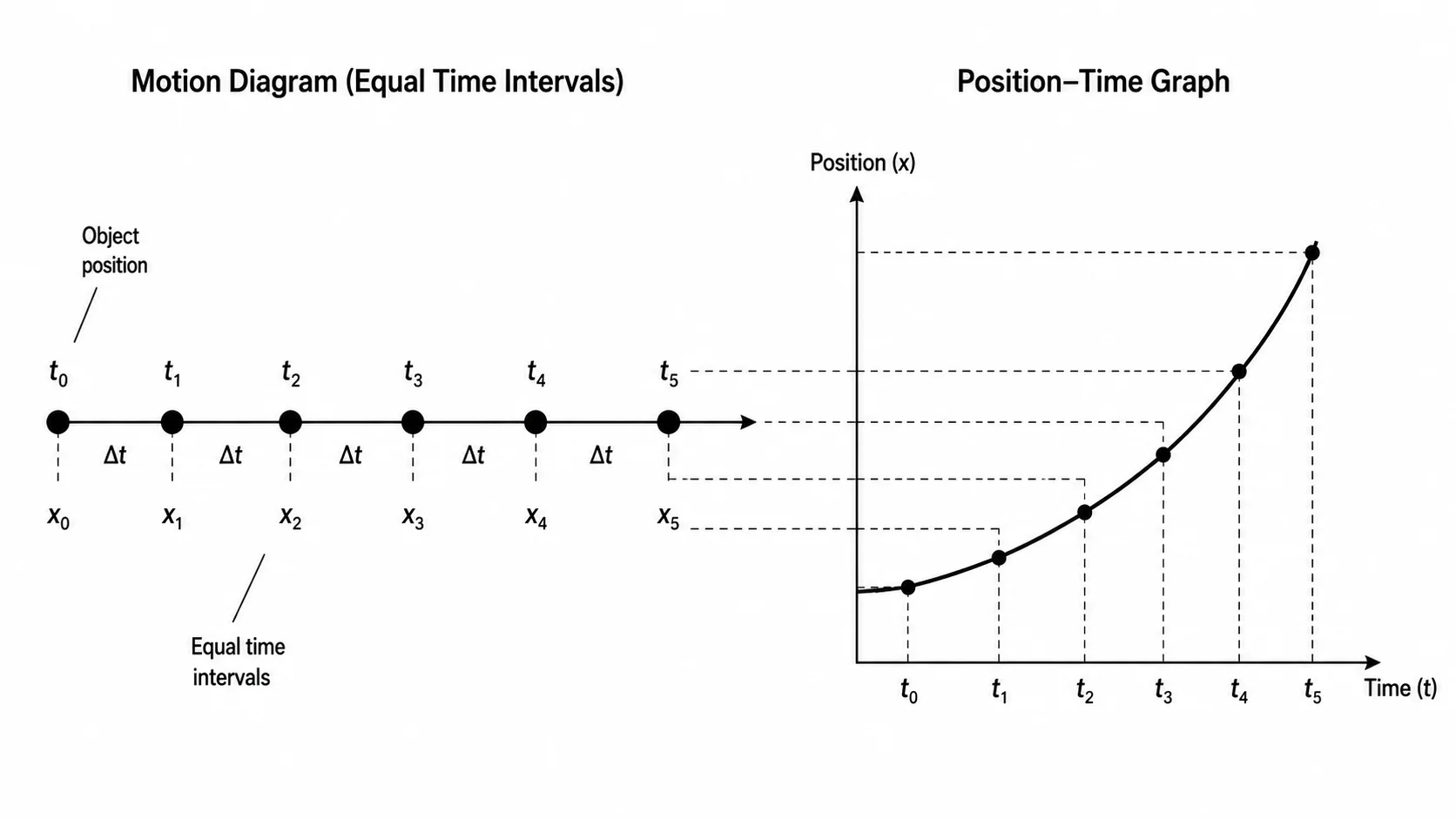

Side-by-side layout: a dot motion diagram on the left and a matching position-time graph on the right, linking dot spacing to slope.

kinematicsposition-time graphanalysis

What is a motion diagram?

A motion diagram (also called a dot diagram or ticker-tape diagram) is a physics tool that represents the position of a moving object at equal time intervals as a series of dots along a path. The gap between dots carries all the kinematic information: evenly spaced dots mean constant velocity, widening gaps mean the object is speeding up, and narrowing gaps mean it is slowing down. Figviz generates clean, labeled motion diagrams from a plain description of the scenario, so you can skip the graph paper and focus on the physics.

How to make a motion diagram

Describe the object and its motion (for example: a cart rolling down a ramp, or a ball thrown upward).

State whether the object speeds up, slows down, or moves at constant velocity.

Choose horizontal, vertical, or curved path, and whether to include velocity vector arrows.

Pick a style (classic textbook, colorful, or minimal) and your aspect ratio.

Generate the diagram, read the dot spacing and vectors, and refine the prompt if any labels or arrows need adjusting.

Reading dot spacing for velocity and acceleration

The single most important rule in a motion diagram is this: dot spacing equals speed. When dots are equally spaced the object moves at constant velocity and its acceleration is zero. When spacing grows from left to right the object accelerates in the direction of motion. When spacing shrinks the object decelerates. Placing velocity vector arrows above each dot lets you see the direction of motion and spot where acceleration changes direction, which is especially useful for projectile and bouncing-ball problems where the horizontal and vertical components behave differently.

Tips for clear and accurate motion diagrams

Label every time step (t0, t1, t2, ...) so the reader knows the time interval. For vertical motion keep the axis clearly oriented upward and note the direction of gravity. If you are showing two-component motion (like a projectile) consider separate horizontal and vertical diagrams side by side. Always sanity-check that the number of dots matches the number of time steps you described, and regenerate if an arrow points the wrong direction or a spacing jump looks inconsistent with the scenario.
